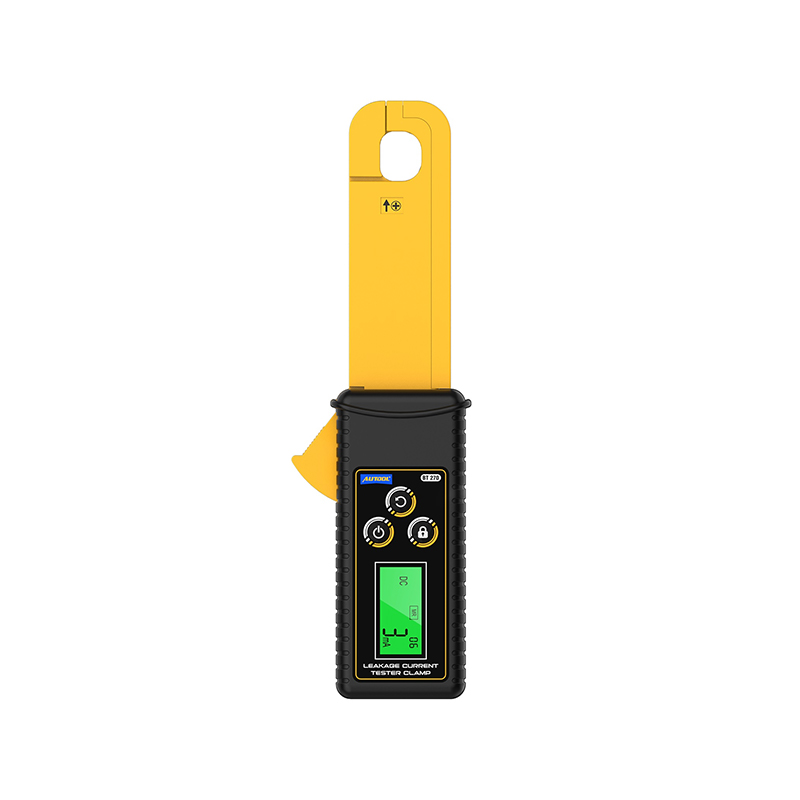

AUTOOL BT270 Clamp On Amp Meter DC Clamp Meter

AUTOOL BT270Product OverviewThe AUTOOL BT270 is a compact clamp-on amp meter designed for automotive dark current, leakage current, power consumption current, motor startup current, and generator charging current checks. It supports non-contact AC/DC current measurement, automatic AC/DC recognition, one-button zeroing, data hold, and 99-set data storage for quick electrical fault diagnosis. AC/DC Auto Recognition 0mA-60A AC/DC 1mA Resolution 99 Data Sets9VDry Battery≤600VLine TestingCAT III600V Safety3 YearsMain Unit Warranty Click to enlarge Click to enlargeBefore You Order And UseBefore You Order And UseReview the measurement range, high-voltage caution, zeroing rule, clamp cleanliness, storage environment, battery warning, and maintenance requirements before using the BT270 clamp meter.Stay Within RangeDo not exceed the specified measurement range of the instrument. The BT270 is designed for 0mA-60A AC/DC current measurement.Use Caution Above 60V DC / 30V ACOperate carefully when the line voltage is greater than 60V DC or 30V AC. Use proper electrical safety procedures.Zero Before MeasurementBefore measuring, press the Zero/Backlight button to perform automatic zero adjustment, especially for DC current testing.Keep The Jaws CleanKeep the jaw contact surface clean. Serious contamination can affect measurement accuracy even though the meter has strong anti-interference ability.Avoid Heat, Humidity, And SunlightDo not store the clamp meter for a long time in high temperature, high humidity, condensation, non-ventilated areas, or direct sunlight.Avoid Impact On The ClampAvoid impact on the instrument, especially on the jaw joint and contact surface, because damage may affect testing accuracy.Replace Low Battery PromptlyLow battery can affect test accuracy. Replace the 9V battery when the battery symbol appears, and remove the battery if the meter will not be used for a long time.Qualified Maintenance OnlyDisassembly, calibration, and maintenance should be performed only by qualified professionals or authorized service personnel.Stop If Safety Is UncertainIf continued use may create a safety hazard, stop using the meter, isolate it, and contact support or an authorized service provider.Key FeaturesKey FeaturesBT270 focuses on precise current and leakage-current checks with automatic AC/DC recognition, non-contact clamp measurement, one-touch zeroing, backlit display, data storage, and automatic power-off.Automatic AC/DC RecognitionThe meter automatically recognizes AC or DC signals and switches modes without manual mode shifting for common current checks.0mA-60A Non-Contact MeasurementMeasure AC/DC current from 0mA to 60A with 1mA resolution using a clamp-on, non-contact testing method.Leakage Current DiagnosisSupports DC leakage current, AC leakage current, ground wire leakage current, and main line current checks.Backlit LCD DisplayThe 4-digit LCD screen with backlight helps make current readings easier to see in darker repair environments.One-Button ZeroingPress the Zero/Backlight button to reset data to zero before testing. No manual zero-adjustment knob is required.Data Hold, Memory, And ReviewUse the Hold/Mem/Mr button to hold readings and store up to 99 numbered data sets for later review.Auto Power-OffAfter 5 minutes of inactivity, the LCD flashes for 30 seconds before automatic shutdown unless the Power button is pressed to retain the test status.9V Battery PowerThe BT270 runs on a 9V dry battery for portable use around vehicle electrical systems and workshop environments.Compact Clamp DesignThe integrated clamp, trigger, power button, Zero/Light button, Hold/Mem/Mr button, and LCD are arranged in a compact handheld body. Click to enlarge Click to enlarge Click to enlarge Click to enlarge Click to enlarge Click to enlargeApplicationsApplicationsUse BT270 when you need current-based electrical diagnosis rather than circuit activation or power-probe testing.Automotive Dark CurrentCheck vehicle quiescent current after the car is turned off to help identify abnormal battery drain.Leakage CurrentMeasure DC leakage current, AC leakage current, and ground wire leakage current during electrical diagnosis.Main Line CurrentClamp the main wire to check corresponding current without cutting the wire or making direct electrical contact.Charging And Power ConsumptionMeasure power consumption current, motor startup current, and generator charging current under proper testing conditions.How To UseHow To UsePower on the meter, zero it correctly, clamp the correct wire, read or store the data, and use fuse-by-fuse checking when diagnosing abnormal quiescent current.Power OnInstall a 9V dry battery if needed, then press the Power button to turn the meter on or off.Zero Before TestingThe meter starts in DC current mode. Press the Zero/Backlight button to zero first, then clamp the wire. For AC current, the meter can auto-zero; for AC current below 25mA, long press the Power button to switch manually.Clamp The Correct WireClamp positive and negative DC wires for DC leakage current, clamp live and null AC wires for AC leakage current, clamp the ground wire for ground leakage current, or clamp the main wire for corresponding current.Read, Hold, Or Store DataRead the current value on the LCD. Press Hold/Mem/Mr to hold and store data automatically; long press Hold/Mem/Mr to review stored data.Diagnose Quiescent CurrentTurn off all appliances and set the key to the off position. If quiescent current is too high, pull fuses one by one. A clear current drop after one fuse is removed indicates the corresponding circuit should be checked.Use NotesThe clamp must be fully closed during testing, and the vehicle should be off for quiescent current checks.Typical quiescent current may be around 30-40mA after the vehicle is turned off; some European vehicles may be around 80-90mA depending on vehicle class and installed equipment.If tested quiescent current is 100mA or above, electrical leakage may exist and the related circuit should be checked.If the LCD shows OL, the measured current is over the maximum test range.Low battery can affect measurement accuracy. Replace the battery when the low-battery symbol appears.SpecificationsBT270 Product SpecificationsBT270 uses non-contact clamp-on measurement with automatic AC/DC shift, 1mA resolution, 99 data sets, CAT III 600V safety classification, and 9V dry battery power.MeasurementProductAUTOOL BT270 Leakage Current Tester ClampMeasurement MethodNon-contact clamp-on measurementRange0mA-60A AC/DCResolution1mA AC/DCAccuracy±2%rdg ±5dgt (23°C ±5°C, <75%rh)Sampling2 times/secondFrequency ResponseAC: 45Hz-400HzShift ModeAutomatic switchOver RangeOL displaysDisplay And MemoryLCD Size35 × 21.5mmBacklightSupported; long press Zero/Light to turn the backlight on or offData HoldPress Hold/Mem/Mr to hold dataData Memory99 setsData ReviewLong press Hold/Mem/Mr to enter or exit review; use Zero/Light and Hold/Mem/Mr to page up or downAuto OffLCD flashes after 5 minutes of inactivity; shuts down after 30 seconds if no action is takenPower, Structure And EnvironmentPower Supply9V dry batteryOperating CurrentMax 20mAClamp Size16 × 18mmTester Size215 × 61 × 32mmWorking Temperature-10°C-50°CHumidity<80%rhLimiting Temperature Error-10°C-0°C and 40°C-50°C; max increased error 2%rdgSafetyLine Voltage600V or belowInsulationAC 3700V/rmsSafety StandardIEC1010-1 / IEC1010-2-032; Pollution Degree 2; CAT III 600V Click to enlarge MeasurementProductAUTOOL BT270 Leakage Current Tester ClampMeasurement MethodNon-contact clamp-on measurementRange0mA-60A AC/DCResolution1mA AC/DCAccuracy±2%rdg ±5dgt (23°C ±5°C, <75%rh)Sampling2 times/secondFrequency ResponseAC: 45Hz-400HzShift ModeAutomatic switchOver RangeOL displays Display And MemoryLCD Size35 × 21.5mmBacklightSupported; long press Zero/Light to turn the backlight on or offData HoldPress Hold/Mem/Mr to hold dataData Memory99 setsData ReviewLong press Hold/Mem/Mr to enter or exit review; use Zero/Light and Hold/Mem/Mr to page up or downAuto OffLCD flashes after 5 minutes of inactivity; shuts down after 30 seconds if no action is taken Power, Structure And EnvironmentPower Supply9V dry batteryOperating CurrentMax 20mAClamp Size16 × 18mmTester Size215 × 61 × 32mmWorking Temperature-10°C-50°CHumidity<80%rhLimiting Temperature Error-10°C-0°C and 40°C-50°C; max increased error 2%rdg SafetyLine Voltage600V or belowInsulationAC 3700V/rmsSafety StandardIEC1010-1 / IEC1010-2-032; Pollution Degree 2; CAT III 600V Product ComparisonProduct ComparisonBT270 belongs in the electrical tester family, but it is a leakage-current clamp meter. Compare it with BT160, BT210, BT250, BT260, and BT280 before choosing a current meter or a power-probe style circuit tester.BT270 FocusChoose BT270 for non-contact AC/DC current measurement, dark current diagnosis, leakage current checks, power consumption current, generator charging current, data hold, and 99-set storage.Not A Power ProbeBT270 is not intended for polarity testing, continuity testing, jumper lead operation, component activation, relay testing, diode testing, or oscilloscope functions.Other BT ModelsBT160, BT210, BT250, BT260, and BT280 are more focused on circuit testing, voltage testing, component activation, relay or diode testing, and power-probe functions depending on model.Display And PowerBT270 uses a 4-digit backlit LCD and 9V dry battery power. Some other models use TFT displays and vehicle battery power through test leads.Decision CheckChoose BT270 when current measurement is the goal. Choose a power-probe model when you need to energize components, test polarity, check continuity, or diagnose circuits through direct contact testing. Click to enlarge Click to enlargeWhat Is In The BoxWhat Is In The BoxThe package image shows the BT270 main unit and included accessories. The 9V battery is the required power supply, but it is not clearly shown in the package image, so confirm final package contents before ordering if needed.Main UnitAUTOOL BT270 leakage current tester clampStorageProtective storage pouch shown in the package imageDocumentationAUTOOL BT270 user manualRetail BoxBT270 product packaging shown in the package imageBattery ReminderBT270 uses a 9V dry battery; confirm whether the battery is included before ordering if required.Related ProductsRelated ProductsCompare related AUTOOL electrical testers before choosing. BT270 is suitable for current and leakage-current measurement, while the related BT models below focus more on circuit testing or power-probe functions.Select options This product has multiple variants. The options may be chosen on the product page Add to wishlist Add to compare Quick view iconQuick view Automotive Circuit TesterAUTOOL BT210 Car Circuit Tester 9-30V Electrical TestersRated 0 out of 5(0) From US$28.00 Select options This product has multiple variants. The options may be chosen on the product page Select options This product has multiple variants. The options may be chosen on the product page Add to wishlist Add to compare Quick view iconQuick view Automotive Circuit TesterAUTOOL BT160 Automotive Circuit Tester Circuit CheckerRated 0 out of 5(0) From US$33.00 Select options This product has multiple variants. The options may be chosen on the product page Select options This product has multiple variants. The options may be chosen on the product page Add to wishlist Add to compare Quick view iconQuick view Automotive Circuit TesterAUTOOL BT250 Car Electrical Circuit Tester 6V-30VRated 0 out of 5(0) From US$39.00 Select options This product has multiple variants. The options may be chosen on the product page Select options This product has multiple variants. The options may be chosen on the product page Add to wishlist Add to compare Quick view iconQuick view Automotive Circuit TesterAUTOOL BT260 Electrical Circuit Tester For TrucksRated 0 out of 5(0) From US$75.00 Select options This product has multiple variants. The options may be chosen on the product page Manual And DownloadsManual And DownloadsDownload the BT270 manual for safety notes, zeroing, AC/DC measurement, data memory, leakage-current checking, specifications, maintenance, warranty, and return information. Click to enlargeAUTOOL BT270 Leakage Current Tester Clamp ManualOpen the PDF manual for BT270 operation, safety, specifications, product care, warranty, and support information. Download ManualNeed Setup Confirmation?Contact AUTOOL Store if you need help confirming zeroing, AC/DC current testing, quiescent current checks, package contents, battery requirements, model selection, or warranty details. Email[email protected] WhatsApp 86 189 2647 7404Questions And AnswersThese answers cover BT270 use cases, AC/DC recognition, measurement range, zeroing, quiescent current diagnosis, power supply, package contents, and warranty support. What Is AUTOOL BT270 Used For? BT270 is used for automotive dark current, leakage current, power consumption current, motor startup current, generator charging current, ground wire leakage current, and main line current checks. It is a clamp-on current tester, not a power-probe circuit activation tool. Does BT270 Automatically Recognize AC And DC? Yes. BT270 can automatically recognize AC or DC current and switch modes without manual mode shifting for common testing. For AC current below 25mA, long press the Power button to switch manually. What Is The Measuring Range And Resolution? The BT270 measuring range is 0mA-60A AC/DC with 1mA AC/DC resolution. If the LCD shows OL, the measured current is over the maximum test range. Should I Zero The Meter Before Measurement? Yes. Press the Zero/Backlight button before measurement to perform automatic zero adjustment. The meter starts in DC current mode after power-on. For AC measurement, the meter can auto-zero, but zeroing before general testing is still a safe operating habit. Can BT270 Measure Automotive Quiescent Current? Yes. Turn off all vehicle appliances, turn the key off, and make sure the clamp is fully closed during testing. Typical quiescent current may be about 30-40mA, while some European vehicles may be about 80-90mA depending on vehicle class and installed equipment. What Should I Do If Quiescent Current Is Too High? If tested quiescent current is 100mA or above, electrical leakage may exist. Open the fuse box and pull fuses one by one. If the current drops clearly after one fuse is removed, check the corresponding circuit or appliance, repair the issue, and test again. Can BT270 Replace A Power Probe Circuit Tester? No. BT270 is mainly for clamp-on current measurement and leakage-current diagnosis. If you need polarity testing, continuity testing, jumper lead operation, component activation, relay testing, diode testing, or power-probe functions, compare BT160, BT210, BT250, BT260, and BT280 before ordering. What Power Supply Does BT270 Use? BT270 uses a 9V dry battery. Replace the battery promptly when the low-battery symbol appears, because low battery can affect measurement accuracy. Remove the battery if the meter will not be used for a long time. What Is Included In The Package? The package image shows the BT270 main unit, storage pouch, user manual, and retail box. BT270 requires a 9V dry battery, but the battery is not clearly shown in the packing image, so confirm final package contents with support if needed. How Long Is The Warranty? AUTOOL provides a three-year warranty for the main unit from the date of receipt, and included accessories are covered by a one-year warranty. Warranty handling depends on the actual breakdown condition and the store policy.Warranty And ContactWarranty And ContactFor BT270 measurement setup, AC/DC recognition, zeroing, quiescent current diagnosis, package confirmation, battery questions, comparison with other BT electrical testers, or warranty support, contact AUTOOL Store directly.Pre-Sales And Product SupportUse support if you need help confirming whether BT270 is the right choice for current measurement or whether another AUTOOL BT circuit tester is better for voltage testing, power-probe functions, relay testing, diode testing, or component activation.BT270 setup, zeroing, and AC/DC current measurement supportDark current and leakage-current diagnosis guidancePackage contents and 9V battery requirement confirmationComparison with BT160 / BT210 / BT250 / BT260 / BT280Main unit warranty and accessory warranty supportTroubleshooting, maintenance, and after-sales assistance Email Support[email protected] WhatsApp Support 86 189 2647 7404
